# ACME screw actuator working principle

![Picture of Paul Kuczma](https://info.racointernational.com/hs-fs/hubfs/Paul.jpg?width=50&name=Paul.jpg) [Paul Kuczma](https://info.racointernational.com/en-us/blog/author/paul-kuczma)

Share: [Share this page via LinkedIn](http://www.linkedin.com/shareArticle?mini=true&url=https://info.racointernational.com/en-us/blog/acme-screw-actuator-working-principle) [Share this page via Email](mailto:?body=https://info.racointernational.com/en-us/blog/acme-screw-actuator-working-principle)

Unlock the mechanics behind the robust ACME screw actuator, a pivotal component used in machinery and industrial applications.

## Exploring the Basics of ACME Screw Actuators

ACME screw actuators are commonly used in applications  to convert rotary motion into linear motion.

They consist of a screw and a nut, with the screw having a thread profile known as the ACME thread. This type of lead screw has been used for over 130 years, having been first introduced by the ACME Screw Machine Company. Original uses were simple lifting systems, screw jacks and vises. It became a National Standard in 1921, and thus the word Acme (or ACME) became synonymous with that type of screw. ACME screw actuators are known for their high load capacity and self-locking characteristics.

The ACME thread is a trapezoidal thread form that often has a low efficiency rating, due to the high friction between the nut and screw threads. The screw  is typically made of materials such as steel or stainless steel for durability, while the nut is usually made of a self-lubricating material, such as bronze or polymer .



## Design and Components of ACME Screw Actuators

ACME screw actuators consist of several key components that work together to convert rotary motion into linear motion. These components include the screw, nut, thrust bearing, and housing. The screw is the main component that translates the rotary motion into linear motion and has an ACME thread profile.

The nut is the component that moves along the screw and converts the rotary motion into linear motion.  The thrust bearing supports the axial load and keeps the screw centrally located with the actuator. The housing encloses the components and provides support and stability to the actuator. The design of ACME screw actuators may vary depending on the specific application and load requirements.

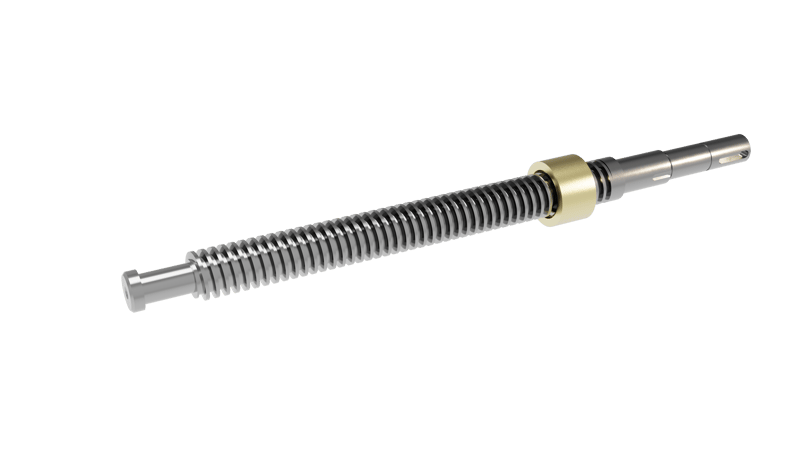

![Acme screw](https://info.racointernational.com/hs-fs/hubfs/Acme%20screw.png?width=807&height=454&name=Acme%20screw.png)

## How ACME Screw Actuators Function

ACME screw actuators function by rotating the screw, which causes the nut to move along the screw. As the nut moves, it translates the rotary motion of the screw into linear motion. Thus the rotary motion of the screw is then transferred into a linear motion. The self-lubricating material of the nut reduces friction and ensures smooth movement.

By controlling the rotation of the screw, the position and speed of the linear motion can be controlled. ACME screw actuators are commonly used in applications that require positioning and control. Additionally, in vertical applications they have the ability to hold a load and not back drive.

## Applications of ACME Screw Actuators in Industry

ACME screw actuators find wide applications in various industries.

They are commonly used in lifting systems, such as scissor lifts and platform lifts, screw jacks, vises, dampers, and gates. These actuators provide the necessary force and thrust for lifting and holding heavy loads.

ACME screw actuators are also used in as positioning devices for adjustable tables or ergonomic furniture. They allow for the reliable adjustment and positioning of the equipment to meet specific requirements.

In the field of material handling, ACME screw actuators are used in conveyor systems and assembly lines. They enable smooth and controlled movement of materials and components.

Overall, ACME screw actuators play a crucial role in industries that require linear motion and control.

## Maintaining and Troubleshooting ACME Screw Actuators

To ensure the optimal performance and long life of ACME screw actuators, regular maintenance is essential. This includes lubricating the screw and nut to reduce friction and prevent wear. The self-lubricating material of the nut may require periodic replacement to maintain smooth movement.

Inspecting the thrust bearing for any signs of damage or wear is also important. If any issues are detected, they should be addressed promptly to prevent further damage.

Common issues with ACME screw actuators may include excessive noise, vibration, or loss of positioning accuracy. These issues can often be resolved by checking for loose components, lubricating the actuator, or adjusting the position sensors. If  any problems or issues persist, consulting the manufacturer or a qualified technician is recommended.
