THE LM RODLESS LINEAR ACTUATOR DESIGN FEATURES:


RACO’s LM-Series (Linear Module) are lightweight and robust-positioning systems. They can be easily configured into a wide variety of single and multi-axis motion-control applications.

Possible configurations include: single axis driven (or idler), a parallel linked single axis , X-Y axis system and/ or X-Y-Z axis systems. The LM is engineered for carriage speeds up to 200 inches per second with a single module load capacity of 800 lbs. and a stroke range of approximately 20 feet with a single extrusion. Further detail of the LM design and benefits to the motion system designer are listed below.

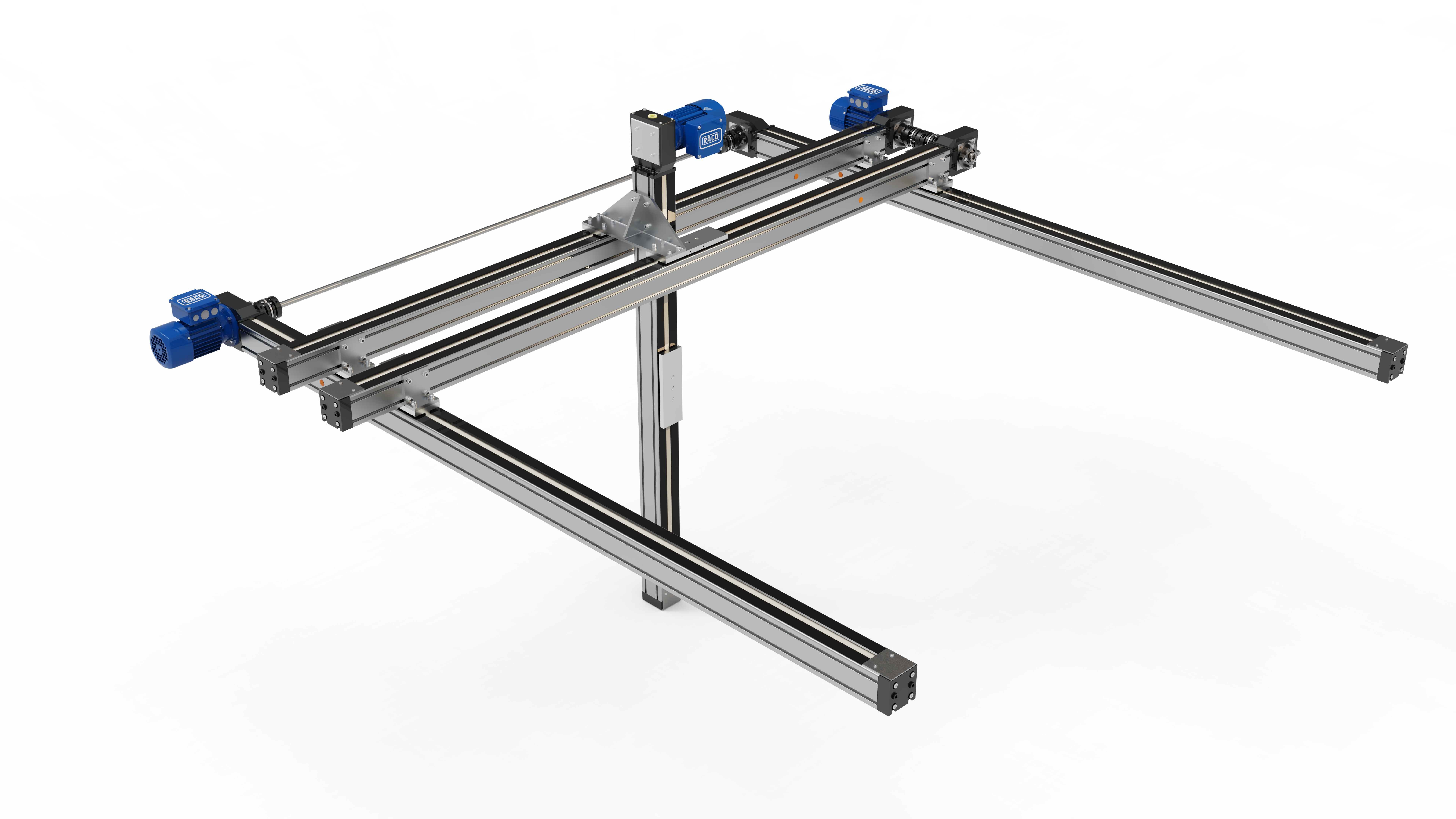

LM4 XYZ Configuration png



Features & Benefits

  • Built with T-Slots & fasteners for more secure mounting and multi axis designs
  • Selection of drive stations to customize the application
  • Mechanical or inductive switches for Home reference and Over-travel Limits and protection
  • A high strength steel cord reinforced polyurethane belt and shock absorbing elastomer tires on ball bearing wheels allow for normal loads up to 800 lbs. and side loads of 400 lbs.
  • Cogged belt & pulleys are machined to be 0 degree backlash which can yield a repeatability of +/- 0.003"
  • High precision 6063 aluminum alloy extrusion can handle carriage travel up to 20 feet without splices. Contact RACO engineering for longer travel applications
  • Easy maintenance with external adjustments via tensioning bolts
  • Belt pulley bearings are sealed to allow for operation in contaminated environments

We are the linear motion people

RACO International, L.P. is located in Bethel Park, PA and serves the needs of customers in the USA, Canada, and Mexico. This includes primarily the sales and manufacturing of customized solutions and services of products to their customers, as well as supporting its customer base with part sales and repairs. Please contact RACO in Bethel Park, PA with any application questions.
